詳細說明
HBVU0606,HBVU0808,HBVU1010,HBVU1212,調速閥
| Model | ￠D1 | ￠D2 | B1 | B2 | ￠P1 | ￠P2 | L1 | L2 | E1 | E2 | H | ￠C | WEIGHT(g) | BOX(EA) |
| HBVU0606 | 6 | 6 | 16.1 | 16.1 | 15.5 | 15.5 | 9.5 | 34.5 | 25.9 | 51.7 | 19 | 19.2 | 16 | 25 |
| HBVU0808 | 8 | 8 | 17.5 | 17.5 | 17.6 | 17.6 | 9.5 | 34.5 | 26.8 | 53.5 | 19 | 19.2 | 17.4 | 25 |
| HBVU1010 | 10 | 10 | 20.1 | 20.1 | 20 | 20 | 12.5 | 42.3 | 31.5 | 63 | 26.3 | 24.2 | 29 | 15 |
| HBVU1212 | 12 | 12 | 23.7 | 23.7 | 23 | 23 | 12.5 | 42.3 | 35.2 | 70.4 | 26.3 | 24.2 | 35.4 | 15 |

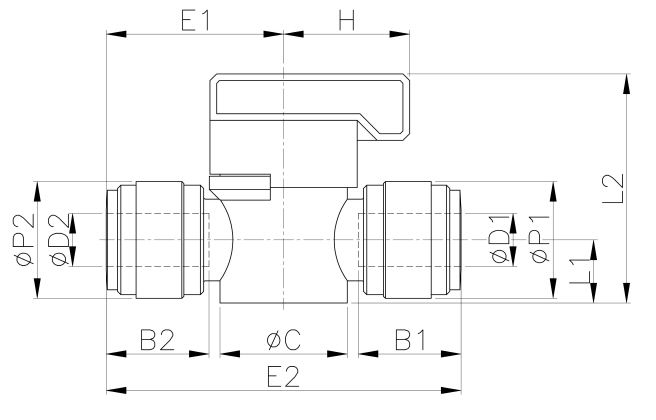

外形尺寸
