詳細說明
DLD2-4,DLD2-10,DLD2-20,DLD2-40,DLD2-80,DLD2-160,DLD2-250,單片電磁離合器
DLD2-B型
| 性能參數規格型號 | DLD2-4 | DLD2-10 | DLD2-20 | DLD2-40 | DLD2-50 | DLD2-80 | DLD2-160 | DLD2-250 | |
| 磨擦參數(N.m) | 靜 | 4.4 | 11 | 22 | 45 | 55 | 90 | 175 | 275 |
| 動 | 4 | 10 | 20 | 40 | 50 | 80 | 160 | 250 | |
| 激磁電壓u(DCV) | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | |
| 線圈消耗功率20℃(W) | 11 | 15 | 20 | 25 | 32 | 35 | 45 | 55 | |
| 允許最高轉速(R/Min) | 8000 | 6000 | 5000 | 4000 | 3000 | 3000 | 2000 | 2000 | |

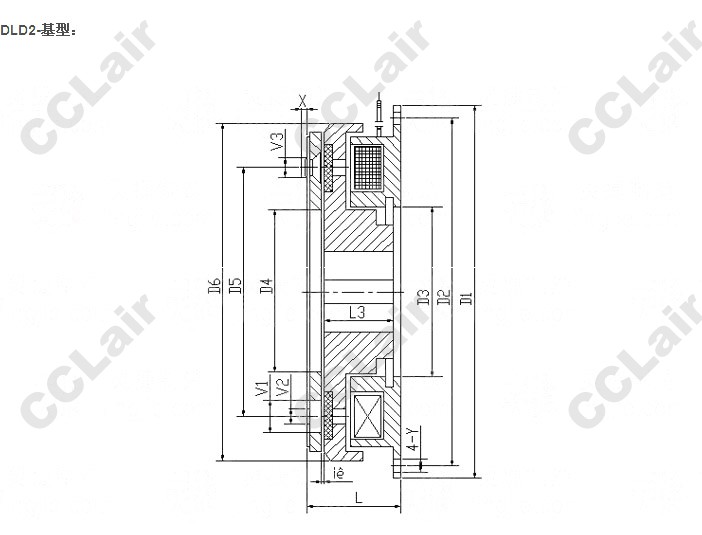

| 尺寸參數規格型號 | DLD2-4 | DLD2-10 | DLD2-20 | DLD2-40 | DLD2-50 | DLD2-80 | DLD2-160 | DLD3-250 |
| D1 | 80 | 100 | 125 | 150 | 158 | 190 | 230 | 280 |
| D2 | 72 | 90 | 112 | 137 | 147.5 | 175 | 215 | 260 |
| D3 | 35 | 42 | 52 | 62 | 62 | 80 | 100 | 120 |
| D4 | 34 | 41 | 51 | 61 | 61 | 79.5 | 100 | 120 |
| D5 | 46 | 60 | 76 | 95 | 101 | 120 | 158 | 185.5 |
| D6 | 67 | 85 | 105 | 133 | 145 | 169 | 213 | 253 |
| D7 | 26 | 31 | 41 | 49 | 65 | 65 | 83 | 100 |
| D | 15 | 15 | 20 | 25 | 25 | 30 | 45 | 55 |
| h | 17.3 | 17.3 | 22.8 | 28.3 | 43.3 | 33.3 | 48.8 | 59.3 |
| b | 5 | 5 | 6 | 8 | 8 | 8 | 14 | 16 |
| d | 15 | 15 | 20 | 25 | 25 | 30 | 45 | 55 |
| d1 | 38 | 45 | 55 | 64 | 64 | 75 | 100 | 110 |
| h1 | 35 | 42 | 51.5 | 60 | 60 | 71 | 94.5 | 104 |
| b1 | 5 | 5 | 6 | 8 | 8 | 8 | 14 | 16 |
| L | 28 | 31 | 36 | 40.5 | 45 | 46.5 | 55.5 | 62.5 |
| L1 | 43.5 | 51 | 61 | 70.5 | 75 | 84.5 | 97.5 | 112.5 |
| L2 | 51.5 | 60 | 71 | 86.5 | 93 | 103.5 | 124.5 | 139.5 |
| L3 | 22 | 24 | 27 | 30 | 32 | 34 | 40 | 45 |
| L4 | 15 | 20 | 25 | 30 | 30 | 38 | 42 | 50 |
| L5 | 23.5 | 29 | 35 | 46 | 48 | 57 | 69 | 77 |
| L6 | 14 | 15 | 20 | 30 | 30 | 35 | 45 | 50 |
| L7 | 12 | 16 | 20 | 24 | 29 | 31 | 33 | 38 |
| L8 | 20 | 25 | 30 | 40 | 40 | 50 | 60 | 65 |
| H | 3.5 | 4.3 | 5 | 5.5 | 5.5 | 6 | 7 | 8 |
| H1 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 6 |
| B | 1.7 | 1.7 | 2.2 | 2.2 | 2.2 | 2.7 | 2.7 | 3.2 |
| P | 6 | 8 | 10 | 12 | 12 | 15 | 16 | 18 |
| m | M4 | M5 | M5 | M6 | M6 | M8 | M8 | M10 |
| m1 | 3-M4深6 | 4-M4深6 | 4-M4深8 | 4-M4深8 | 6-M5深10 | 6-M5深10 | 6-M6深12 | 6-M6深12 |
| V1 | 3-φ6.3 | 3-φ8 | 3-φ10.5 | 3-φ12 | 3-φ12 | 3-φ15 | 3-φ20 | 3-φ20 |
| V2 | 3-φ3.1 | 3-φ4.1 | 3-φ5.1 | 3-φ6.1 | 3-φ6.1 | 3-φ8.1 | 3-φ10.2 | 3-φ10.2 |
| V3 | 3-φ6 | 3-φ7.5 | 3-φ9 | 3-φ11 | 3-φ11 | 3-φ14 | 3-φ18.5 | 3-φ18.5 |
| X | 1.5 | 2.8 | 3.8 | 5 | 5 | 6 | 8 | 8 |
| Y | 5 | 6 | 7 | 7 | 7 | 9.5 | 9.5 | 11 |
| δ | 0.2 | 0.2 | 0.3 | 0.3 | 0.5 | 0.3 | 0.5 | 0.5 |
DLD2-B型
